2.4 PICKUP
SPECIFICATIONS
Performance
Passenger capacity
4 (2 front + 2 rear)
Maximum speed on land
20 mph
(32 km/h)
Maximum speed on water
3.1 mph
(5 km/h)
Maximum uphill & downhill
35°/ 70%
Maximum sidehill
22°/ 40%
Base vehicle shipping weight
4200 lb
(1900 kg)
Ground pressure fully loaded
2 lb/po2
(0.14 kg/cm²)
Safety features
EPA / Emission
Tier 4 Final/Stage V
Brakes
Automatic safety brake

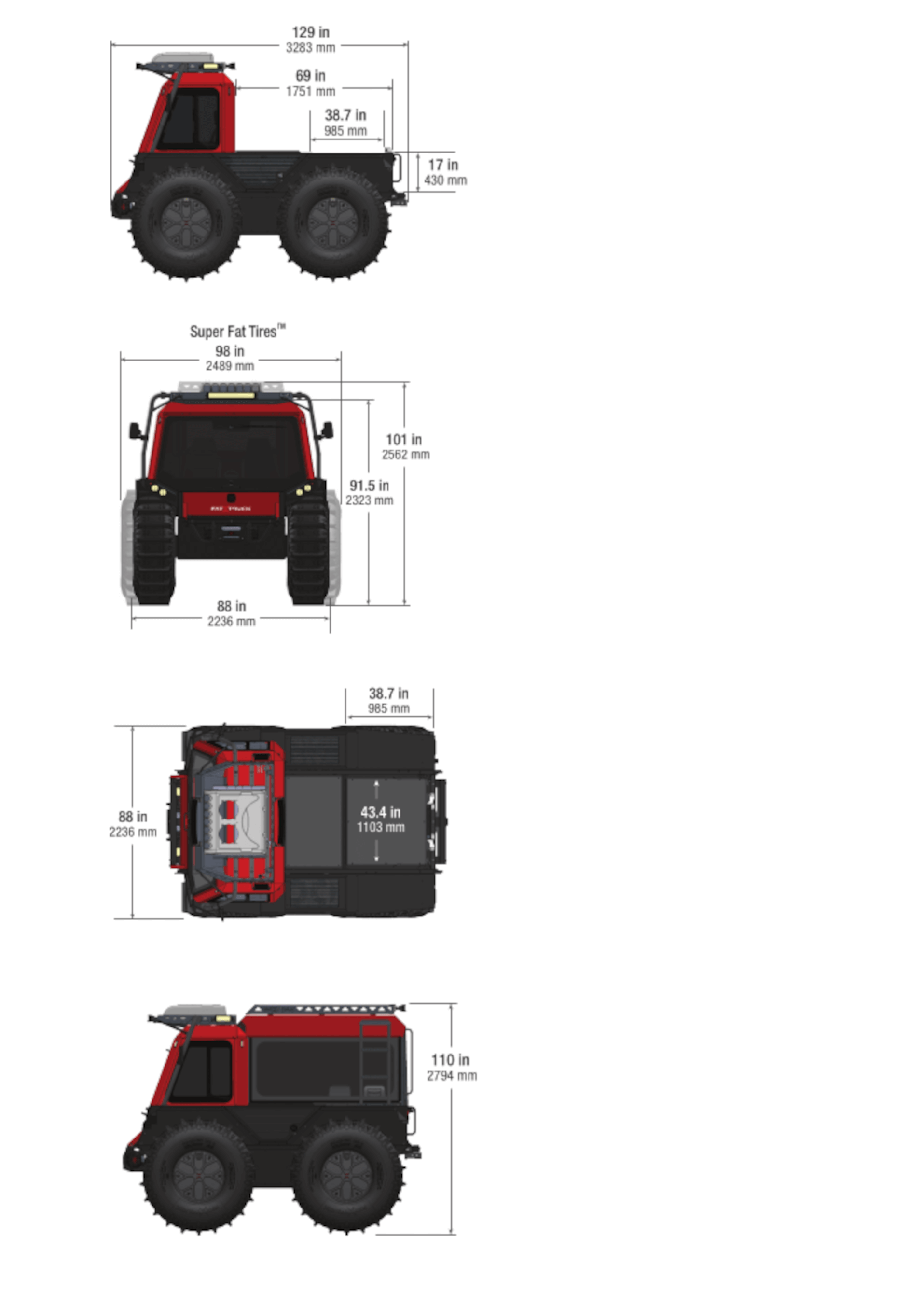

Dimensions
Ground clearance
18 in
(457 mm)
Controls
Controller
Microprocessor
Warranty
Limited 1 year / 1000 hours
(Which ever comes first)
Engine
Emission standards
EPA Tier 4 final
EU Stage V
Number of cylinders
3 cylinders
Displacement
89 po³
(1.46L)
Horsepower @ 2400 RPM
56 hp
(42 kW)
Torque @ 1600 RPM
136 lb-ft
(184 N-m)
Cooling System
Liquid cooled
Electrical
Alternator capacity
110 A
Transmission
Brakes
Brakes
Positive deceleration through hydrostatic transmission
Parking brakes
Brake disc applied, pressure released
Tires
Front & Rear
52 x 19 x 20 inches
Pressure
0.5 to 6 PSI
(0.035 to 0.42 kg/cm²)
Fuel System
Capacity
19.5 US Gal
(74 L)
Average fuel autonomy
12 h
Standard equipment
Operator seats
2 front seats with 3-points seat belts
Lights
Front, brakes, position, flashers, dome
Ingress
Ladders with grab handles
Fire extinguisher
2.5 lb ABC
Bilge pump
First aid kit
Front and rear bumpers
Lockable fuel cap
Cup holders
Operator & Maintenance manual
Options
Air conditioning
Front winch
Additional battery
Rear Hitch
Front and rear shackles
Studs for ice
Engine & hydraulic heater 110 V
Canopy with openable windows, dome light
Heater / defroster
Extra heater
Front windshield with wiper
Custom color
Front roof rack
Rear roof rack
Rear vinyl canopy
Exterior mirrors
Back-up camera
Back-up alarm
4-Way camera system
Rear ROPS
Rear seats with safety belts
Directional light with remote control
Front, side and rear light LED bar
LED strobe light
Electronic inclinometer
Cold weather package
Ventilation fan
Storage box
Rear tailgate with ladder
Tow package
High flotation tires and rim
Wheel Pods™
Transportation trailer
Transportation rack
Amphibious trailer
Super Fat Tires™
